V2801RGW VSOL FIBER ROUTER

Description

Overview & Key Features

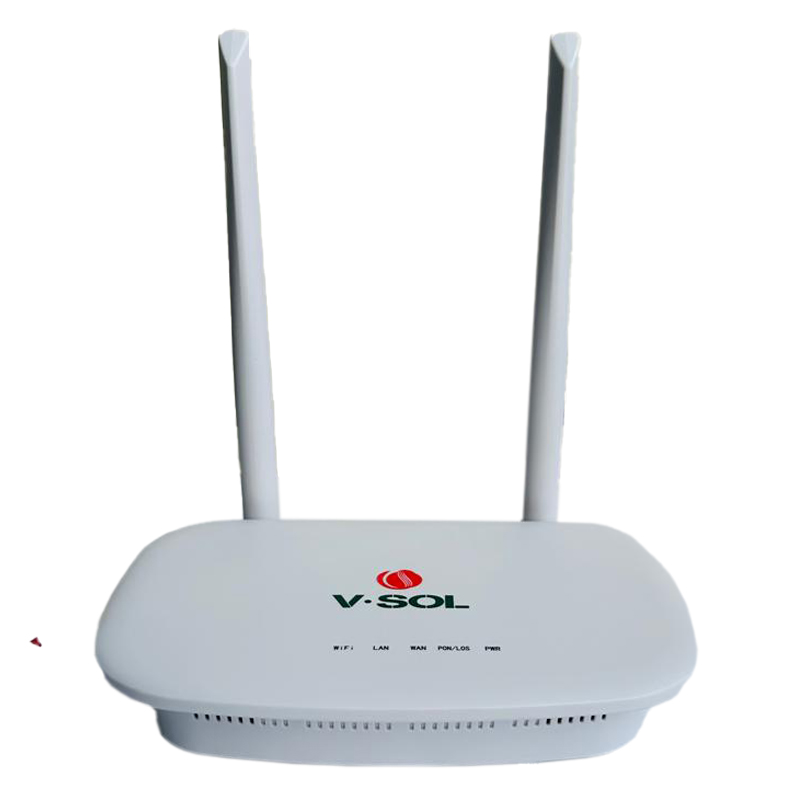

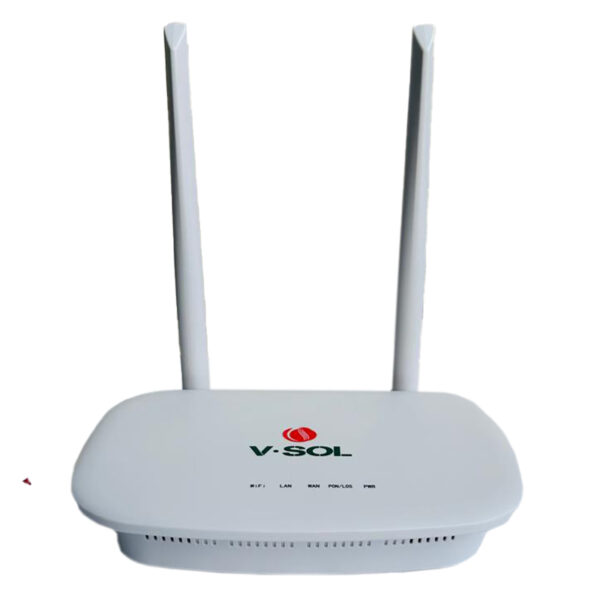

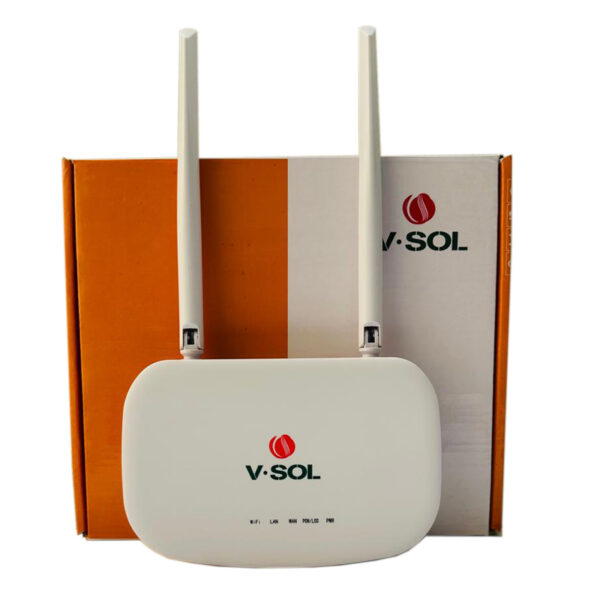

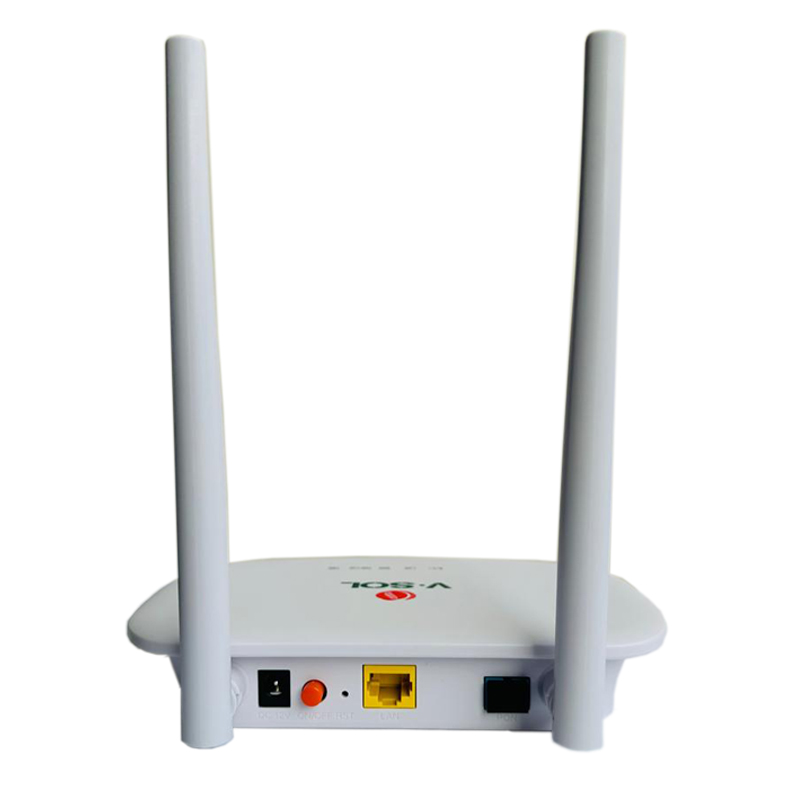

The VSOL V2801RGW is a compact, dual-mode XPON ONU (Optical Network Unit)—supporting both GPON and EPON—designed for FTTH (Fiber To The Home) or SOHO deployments. It integrates routing, firewall, and Wi-Fi capabilities in a single device .

Core Specifications:

• PON Connectivity: Supports GPON (ITU-T G.984.x) and EPON (IEEE 802.3ah), with 1× SC/UPC optical port, Tx at 1310 nm and Rx at 1490 nm

• Ethernet: 1× Gigabit LAN

• (RJ-45, auto-adaptive) Bi internal/external antenna

• Chip & Memory: Realtek chipset; 64 MB SDRAM .

• Routing & Security: Offers NAT, firewall (including DDOS protection), IPv4/IPv6, DHCP, PPPoE, DMZ, DDNS, VLAN (802.1Q), QinQ, IGMP snooping, and more .

• Management: Supports OAM, OMCI, WEB, Telnet, TR-069, making it operator-friendly.

• Power & Consumption: Uses 12 V, 0.5 A external adapter; typical power consumption around 6 W (some sources cite ≤3 W) .

• Physical Specs: Measures approximately 120 × 78 × 30 mm, weighs ~0.15 kg

• Environmental Ratings: Operates between 0 to 50°C (or −10 to +55 °C, depending on regional versions), safe storage up to −30 °C

Additional Notes

• The user manual provides setup guidance, panel LED explanations, and feature instructions .

• It holds an FCC ID (2AVIF-V2801RGW) certifying compliance with RF and Wi-Fi regulations, with documentation and test data available .

• The model name appears as both V2801RGW and V2801RW in some documentation—but all refer to the same dual-mode ONU

Summary

The VSOL V2801RGW is a versatile, budget-friendly fiber ONU suited for home or small-office use. It combines a GPON/EPON interface, gigabit Ethernet, Wi-Fi, and comprehensive routing features in a compact casing. Its support for management protocols like TR-069 makes it especially suitable for ISP deployments.
