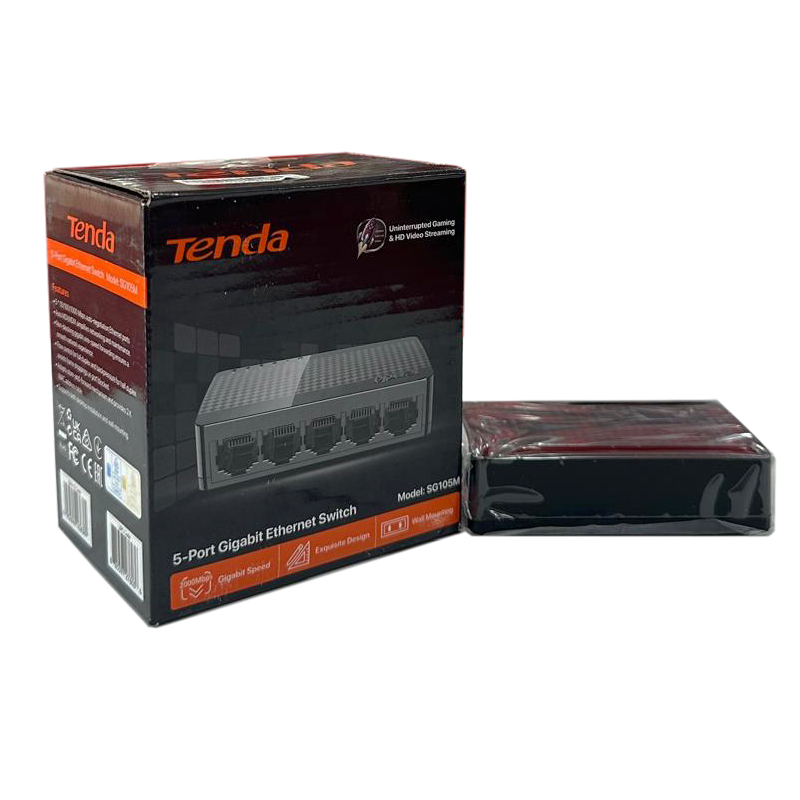

TENDA 5PORT GIGABIT DESKTOP SWITCH

Description

🔌 Key Specifications

• Standards: IEEE 802.3, 802.3u, 802.3ab (Gigabit Ethernet), 802.3x (flow control) Reddit+15Paktron CCTV+15KOA Electronics+15Imediastores

• Ports: 5 × 10/100/1000 Mbps RJ‑45, auto-negotiation, Auto‑MDI/MDIX Tenda+7Paktron CCTV+7KOA Electronics+7

• Switching:

  • Forwarding capacity: up to full wire speed (1,000 Mbps per port; aggregate ~2,000 Mbps in full-duplex) Imediastores

  • Switching capacity: 10 Gbps total Comx Computers+15Paktron CCTV+15KOA Electronics+15

  • Forwarding rates: ~1,488,800 pps per port at 1 Gbps

  • Buffering & management: 2K MAC address table, store-and-forward switching, automatic MAC learning/aging Paktron CCTV+8KOA Electronics+8Comx Computers+8

  • Jumbo frames: supports up to 15 K bytes Reddit+15KOA Electronics+15O5 Fire Security+15

🌍 Physical & Environmental

• Housing: ABS plastic (some “M” variants are more compact: ~82 × 52 × 22 mm vs standard ~96 × 66 × 23 mm) Sama Link Store+1Tenda+1

• Mounting: Desktop or wall-mount capable Reddit+11KOA Electronics+11Comx Computers+11

• LEDs: Power indicator + 5 link/activity LEDs (one per port) Tenda+10Paktron CCTV+10O5 Fire Security+10

• Power: External adapter, input 100–240 V AC, output 5 V DC @ 0.6 A O5 Fire Security+2Paktron CCTV+2Imediastores+2

• Power consumption: Low-power design – ~0.5 W idle, up to ~2.5 W max depending on voltage

🌡️ Operating Conditions

• Temperature: 0 °C – 45 °C

• Humidity: 10% – 90% (non-condensing)

• Storage: –40 °C – 70 °C; 5% – 90% humidity Imediastores+12KOA Electronics+12Sama Link Store+12

✅ Additional Features & Highlights

• Plug-and-play: No configuration—instant network setup. Auto MDI/MDIX simplifies cabling Reddit+14Infotec Plus+14Reddit+14

• Quiet / Fanless: No moving parts—should be silent. However, some reviewers have reported a faint electrical buzzing (possibly due to coil whine or power adapter) Reddit

• Use cases: Perfect for small office/home network expansion, surveillance systems, gaming consoles, printers, PCs, etc. Reddit+15Tenda+15Reddit+15

Reddit user note:
“Switches without a fan shouldn’t make any noise… electronics making a ‘buzzing’ sound is not normal… I would prob get a different brand.” — on SG105 buzzing issue Paktron CCTV+15Reddit+15Reddit+15

🔍 Summary Table
