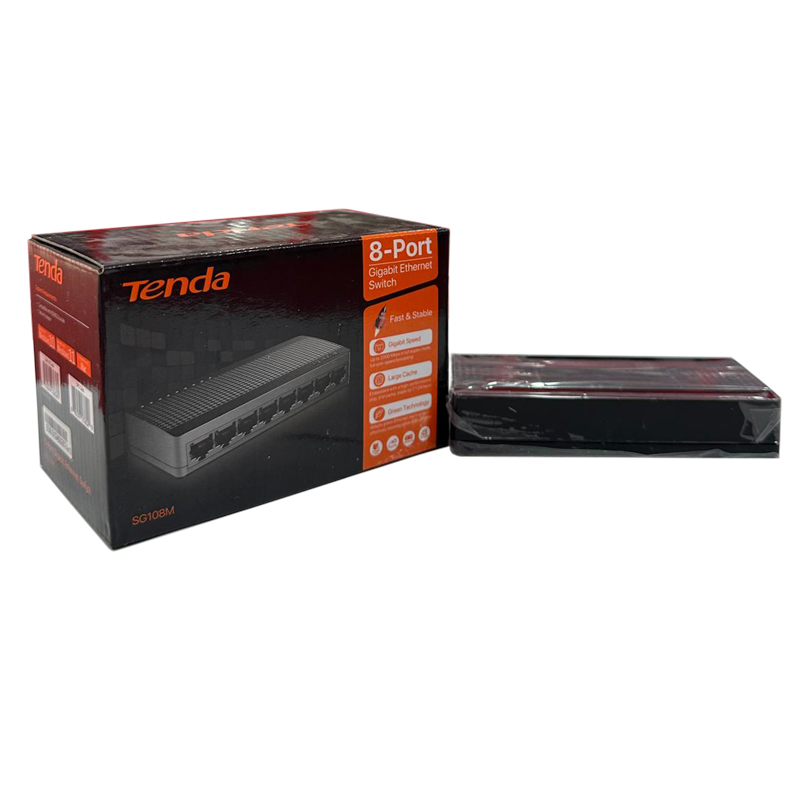

SG108M TENDA 8PORT GIGABIT DESKTOP SWITCH

Here are the detailed specifications for the Tenda SG108M unmanaged 8‑port Gigabit Ethernet switch:

🔌 Hardware & Ports

• Ports: 8 × RJ‑45 10/100/1000 Mbps auto-sensing Gigabit Ethernet

• Auto MDI/MDIX: Supported on all ports, so no crossover cables needed Reddit+15Gear Up+15iPCstore+15

• LEDs: Link/Activity on each port; Power indicator present Microless+5iPCstore+5Gear Up+5

• Switching Capacity: 16 Gbps full duplex AiO+9Tenda+9iPCstore+9

• Forwarding Rate: Up to 11.9 Mpps Gear Up+9Tenda+9iPCstore+9

💾 Buffering & Addresses

• Buffer Memory: 4 Mb packet buffer Reddit+9Tenda+9iPCstore+9

• MAC Address Table: Supports 8,000 MAC entries Code 23 Network+6Tenda+6Microless+6

• Jumbo Frame Support: Up to 15 KB packet size Reddit+15Tenda+15Microless+15

⚡ Power & Energy

• Power Input: 100–240 VAC, 50/60 Hz (external adapter 5 V ⎓ 0.6 A) Tech-America+9Tenda+9Code 23 Network+9

• Max Power Consumption: < 3 W Reddit+15Tenda+15Gear Up+15

🛠️ Construction & Design

• Dimensions: 124 × 59 × 23 mm Cendirect+9Tenda+9iPCstore+9

• Material: Plastic housing AiO+8Tenda+8Tenda+8

• Mounting: Supports desktop and wall mounting; no rack-mount support Microless+5Tenda+5Code 23 Network+5

• Fanless: Yes – completely silent operation

🌡️ Environmental Specs

• Operating Temp: 0 °C to 45 °C Reddit+12Tenda+12Gear Up+12

• Storage Temp: –40 °C to 70 °C AiO+4Tenda+4Code 23 Network+4

• Humidity: 10–90% (operational), 5–90% (storage), non-condensing iPCstore+1AiO+1

📶 Standards & Features

• Network Standards: IEEE 802.3, 802.3u, 802.3x (flow control), 802.3ab AiO+11Tenda+11Microless+11

• Switching Mode: Store-and-forward Microless+6Tenda+6Code 23 Network+6

• MAC Learning: Auto-learning, auto-updating Tenda+6Tenda+6Microless+6

• Plug-and-play: No configuration needed

🌍 Use Cases

Ideal for home and small office setups:

• Connects NAS, gaming consoles, smart TVs, PCs, printers, and surveillance cameras seamlessly Cendirect

Summary Table
