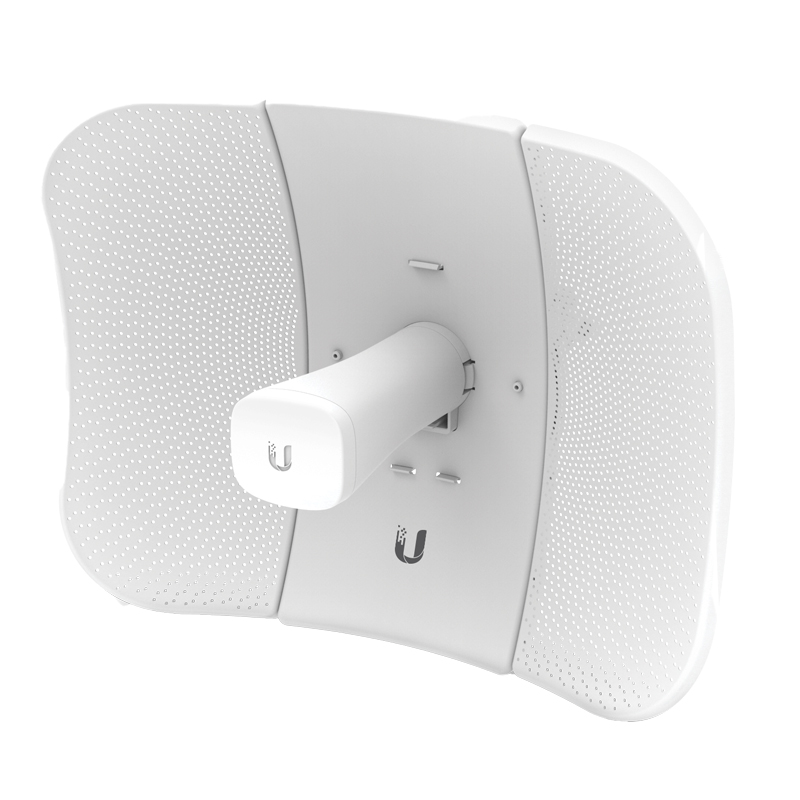

LIGHT BEAM AC GEN 2

Description

⚙️ Key Specifications (from the official datasheet and vendor sites)

• Operates in 5 GHz band (802.11ac airMAX ac, 2×2 MIMO)

• 23 dBi directional antenna gain (Gen 2 version) with tighter beamwidth, boosting noise immunity by spatial filtering of interference

• Integrated InnerFeed® design: radio built directly into feedhorn, eliminating cable loss

• Separate 2.4 GHz Wi‑Fi management radio for mobile setup and configuration via the UNMS/mobile U‑Mobile app

• Adjustable mount with separate azimuth and elevation, and built‑in bubble level for alignment

• Typical throughput up to ~450 Mbps depending on conditions; tested around ~100 Mbps on a link with upstream/downstream limitations

• Full Gigabit Ethernet link support with passive PoE and ESD protection feature

• Supports channel widths from 10 up to 80 MHz (PtP and PtMP modes), auto channel selection, power control, spectrum analysis via airView, WPA2 security

• Improved noise rejection thanks to tighter directional beam — ideal in congested RF environments

• Fast and user‑friendly setup through a separate Wi‑Fi management radio accessible on mobile devicesDurable and compact, with efficient packaging and lightweight design, easy for shipping and deployment
