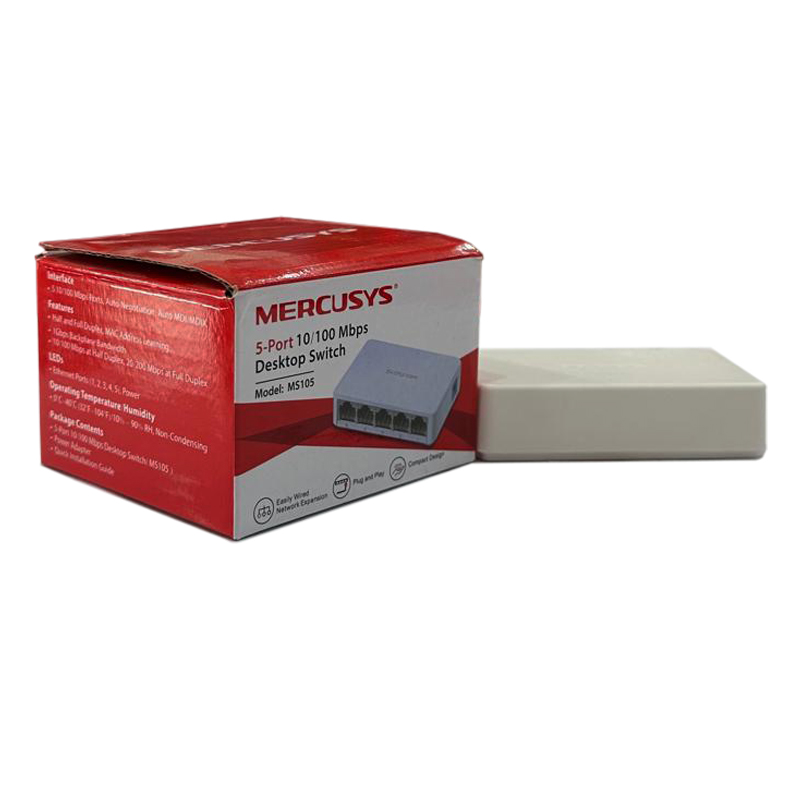

5PORT MERCUSYS DESKTOP SWITCH

Overview:
The Mercusys 5-Port 10/100 Mbps Desktop Switch is a compact, energy-efficient networking device designed to expand your wired network quickly and easily. With five auto-negotiation Fast Ethernet ports, this plug-and-play switch is perfect for small offices, home networks, and SOHO setups needing fast and reliable connectivity.

Key Features:

• 5× 10/100 Mbps Auto-Negotiation RJ45 Ports

• Supports Auto MDI/MDIX – No need for crossover cables

• Plug and Play – No configuration needed

• Compact and Fanless Design – Quiet operation and space-saving

• Green Ethernet Technology – Power-saving features reduce energy consumption

• Reliable Data Transfer – IEEE 802.3x flow control for full-duplex mode and backpressure for half-duplex mode

Specifications:

• Standards and Protocols: IEEE 802.3, 802.3u, 802.3x

• Interface: 5x 10/100 Mbps RJ45 ports with Auto MDI/MDIX

• MAC Address Table: 1K

• Switching Capacity: 1 Gbps

• Forwarding Rate: 0.744 Mbps

• Power Supply: External Power Adapter (varies by region)

• Power Consumption: Max 2.05W

• Dimensions: Approx. 82 x 49 x 22 mm

• Housing: Plastic

• Mounting: Desktop

Applications:

• Expanding wired connections in home or small office

• Connecting PCs, printers, IP cameras, or smart TVs

• Ideal for small workgroups or environments needing simple LAN expansion

What’s in the Box:

• 1x Mercusys 5-Port 10/100 Mbps Desktop Switch

• 1x Power Adapter

• 1x Quick Installation Guide
